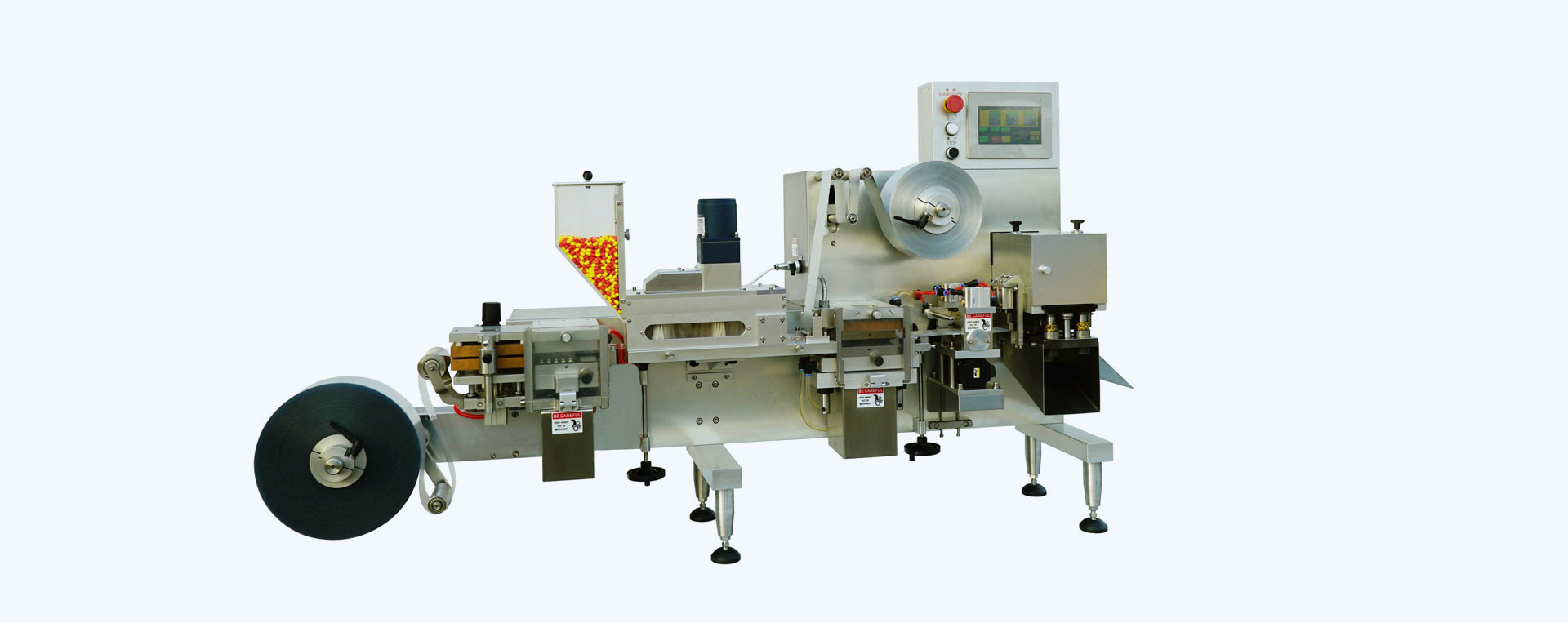

Blister Machine DPP80
Videos of this Blister Machine:https://www.youtube.com/watch?v=pHNeBi4XRy8
Various type of Blister Feeder：
https://www.youtube.com/watch?v=bpl69Yw9H80
The characteristics of Blister Machine DPP80:
DPP80 is a compact, customizable, commercially competitive blister packaging machine for clinical trial laboratories and facilities requiring low volume packaging solutions.
Produces small batches of all types of blister packs including thermoformed and cold-formed.
Easy use interface.
Compact space saving, table top design for convenient blister packaging.
Fast set-up and minimal training required.
Tool-less change over of format parts in less than 5 minutes.
All main machine parts either 316L or 304 stainless steel, anodized aluminium or PTFE.
Teflon coated forming heating plates.
Benefits:
Bring your blister packing in-house instead of booking time on production lines or outsourcing to a third party – minimizes delays, allowing your new drug product to get to market sooner.
Blister pack using a variety of materials, novel shapes, sizes or perforations.
Fast & easy set-up – no specialist knowledge is required to operate so there is no need for an engineer to be present Compact, portable design.
Jornen can design your new blister packs. This is especially useful for customers who conduct clinical trials. We can advise them how to rationalise the number of different tools needed, even if the lab needs to package many different products
Fully cGMP, so it is quick to clean – requires 5 minutes
Fast changeover – reduces down-time between production batches.
Application:
Blister Machine DPP80 is ideal for producing small batches of high quality blister packs in: Pharmaceutical Research and Development laboratories, Clinical trials, Stability studies, Package development, Marketing, samples, Pharmaceutical production and packaging departments.
See our machines running in pharmaceutical company
See our headquarters and production plants in Shanghai
Main Technical Parameters
Max. Speed: 27 punches/min.
Max. Output: 27 blisters/min. ( blister size 57×80mm)
Max. Forming Area: 70×100mm
Max Forming Depth: 12mm
Material:Max. width: 80mm
Machine Power: 2.5kw
Machine Dimension (LxWxH): 1600×520×1050mm
Machine Weight: 170kg
