Videos of this Blister Machine：https://www.youtube.com/watch?v=5btYG_iKwvE
https://www.youtube.com/watch?v=leNuJmy8vqM
Blister Packaging Line 100
https://www.youtube.com/watch?v=onEkz5ey1Ls

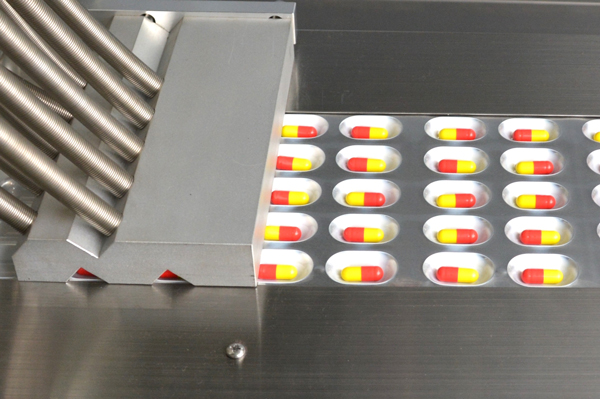

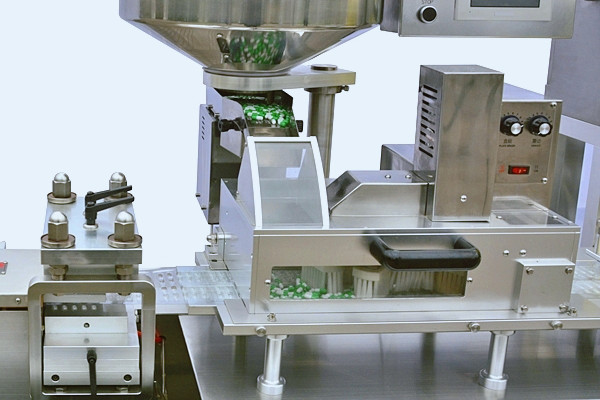

Various type of Blister Feeder：
https://www.youtube.com/watch?v=bpl69Yw9H80

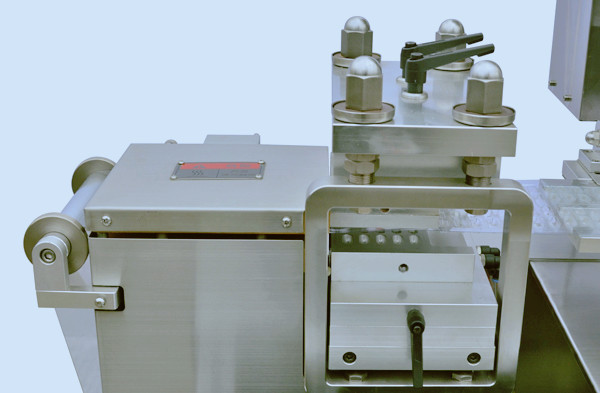

The characteristics of Blister Packing Machine DPP150K-2:
· Blister Packing Machine DPP150K-2 is small and suitable for the blister packaging of capsules, tablets (irregular tablets) and pills, etc., for small batch production.

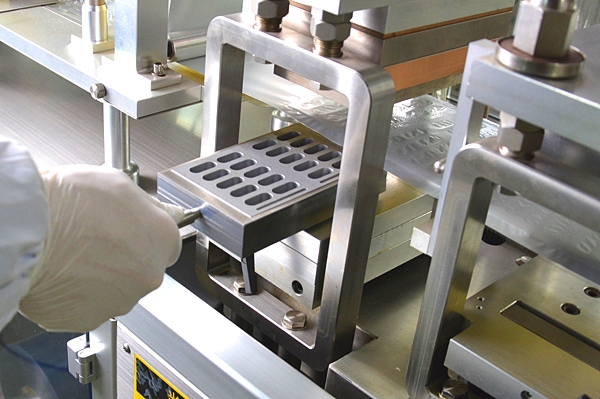

· Extremely straightforward format changeover.

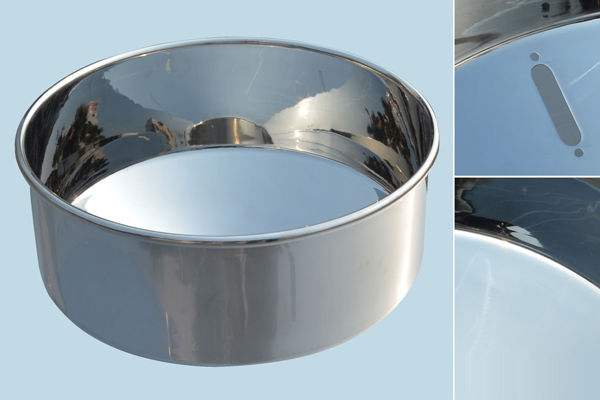

· All the main parts are made of premium stainless steel and alu-alloy material, and machined by advanced high precision CNC tooling machines.

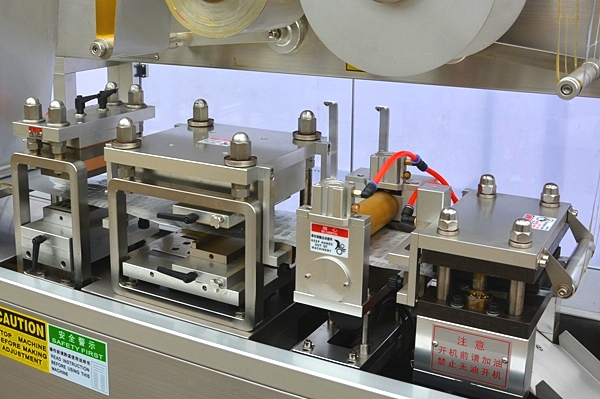

· Sealing pressure adopts the gas-hydraulic pressure cylinder, so the pressure can be set freely according to the sealing area (commonly a larger sealing area requires higher pressure.
· All the main parts are made of premium stainless steel and alu-alloy material, and machined by advanced high precision CNC tooling machines.
· The blister length can be set freely through Touch Screen User Interface, which reduces the time for a format changeover.

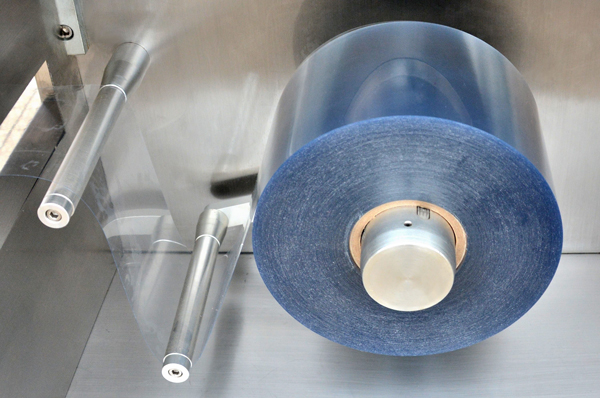

· Material drag system adopts a precise servo motor to achieve stable, accurate running and allows blister length to be set freely.
· Separation of drive and operating zones are in compliance with pharmaceutical GMP requirements.
· The upper and lower plates adopt contact heating method that significantly reduces the forming temperature. Thus the shrinkage, deforming of packaging material and power consumption are minimized.

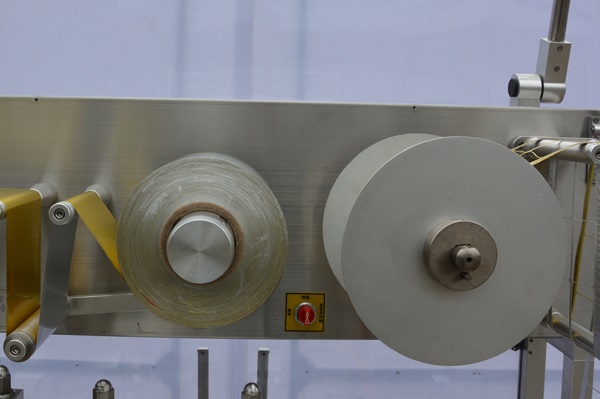

· Using a fast lock method enables replacement of lidding material easily within 10 seconds.
· It is suitable for plastic thermoforming and aluminum cold forming blister packaging.
· This machine can be custom-built to produce plastic thermoformed trays with maximum forming depth reaching 50mm.
See our machines running in pharmaceutical company
See our headquarters and production plants in Shanghai
Main Technical Parameters
Max. Speed: 50 punches/min. Max. Output: 100 blisters/min. ( blister size 57×80mm) Max. Forming Area: 135×120mm Max Forming Depth: 12mm Material: Max. width 150mm Machine Power: 4.7kw Machine Dimension: 2200×570×1380mm Machine Weight: 800kg
